15 watt Commercial LED Downlight Retrofit; 4 inch; 4000K; 100-277 volts (40JQY17)

Image may not reflect selected features
No Image
Available

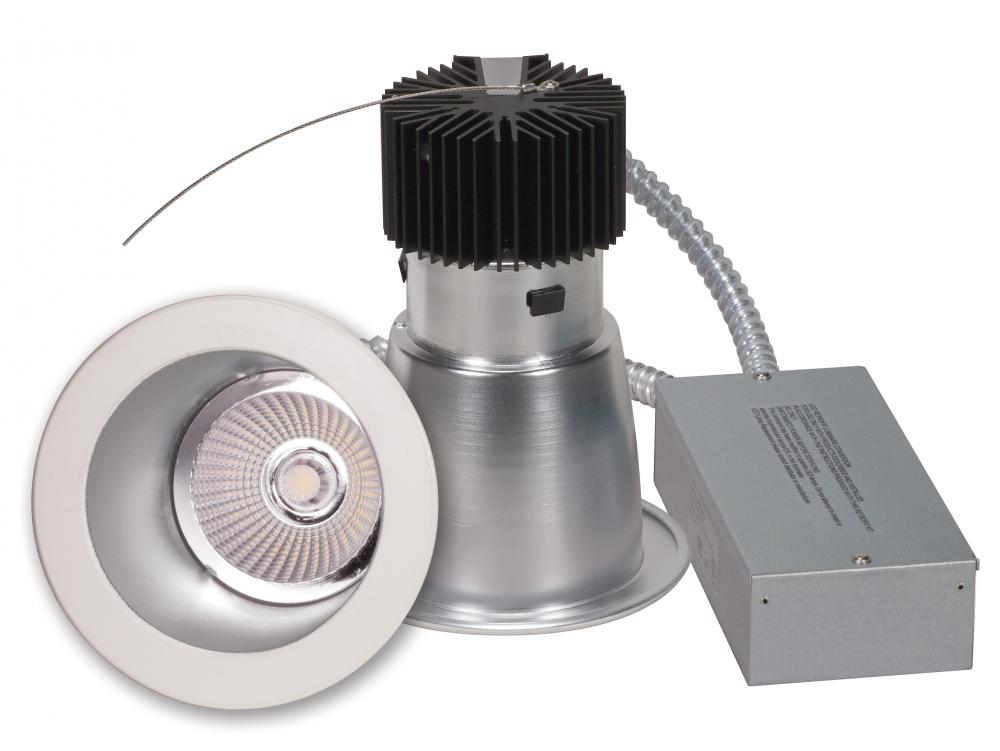

15 watt Commercial LED Downlight Retrofit; 4 inch; 4000K; 100-277 volts
BASE PRICE:
$
206
07
/ / 1
($206.07 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40JQY17
Dimensions:
Height: 7.28"
Width: 5.63"
Silver
Availability:
  • Manufacturer may be Out Of Stock.
  • This Item has been Discontinued.
Recommended Items
Description
Details
Downloads
15 watt Commercial LED Downlight Retrofit; 4 inch; 4000K; 100-277 volts
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
Silver
Option:
LED , Prop 65
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Diameter:
5.63
Dimmable:
Yes-Dimmable
Each Height:
9.84
Each Length:
8.66
Each Width:
7.87
Lumens:
1020L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.150-0.054A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
40
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
Each Cube:
0.3881
Each Quantity:
1
Efficacy:
68.00 LPW
FCC Compliant:
Yes
Finish Family:
Silver
Fixture shape:
Round
Flr Equiv:
1 x 26W CFL
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
Installation Notes:
4 in. min. to 4.7 in. max. mounting frame diameters
JA8 Compliant:
No
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.85
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cULus - Classified;cULus - Certified
SDS class:
LED_Fixture
Short Description:
15WLED/CDL/4/4K/100-277
Temperature (CCT):
4000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Trim Color:
Silver
Wattage Selectable:
No
Weight Lb.:
3.44
