54 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt (40J8LTH)

Image may not reflect selected features
No Image
Available
54 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt
BASE PRICE:
$
0
00
/ / 1
($0.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40J8LTH
Dimensions:
Width: 3.35"
No Finish
Availability:
  • Manufacturer may be Out Of Stock.
  • This Item has been Discontinued.
Description
Details
Downloads
54 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
4501-5000
Category:
LED
Sub-Category:
HID Replacements
Volts:
277V-480V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
Corncob
Diameter:
3.35
EA Length:
3.67
Harmonized Codes:
8539.52.0091
Length:
9.5
Lumens:
8100L
Shap Carton Width:
3.67
Ship Carton Height:
10.97
Ship Weight:
1.94
Warranty:
5 Year Limited - Hi-Pro
Weight:
1.74
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Universal
Candle Power:
737.4
Carton Cubic Feet:
0.08550000000000001
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
150.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Natural light
Feature 2:
LED
Feature 3:
Damp, Enclosed Rated Replacement Lamp
Feature 4:
L:9.50 D:3.35
Feature 5:
Type B Ballast Bypass
HID Equivalent:
250W
Housing Color:
White/Grey
Incandescent Equivalent:
250W
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP64
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:

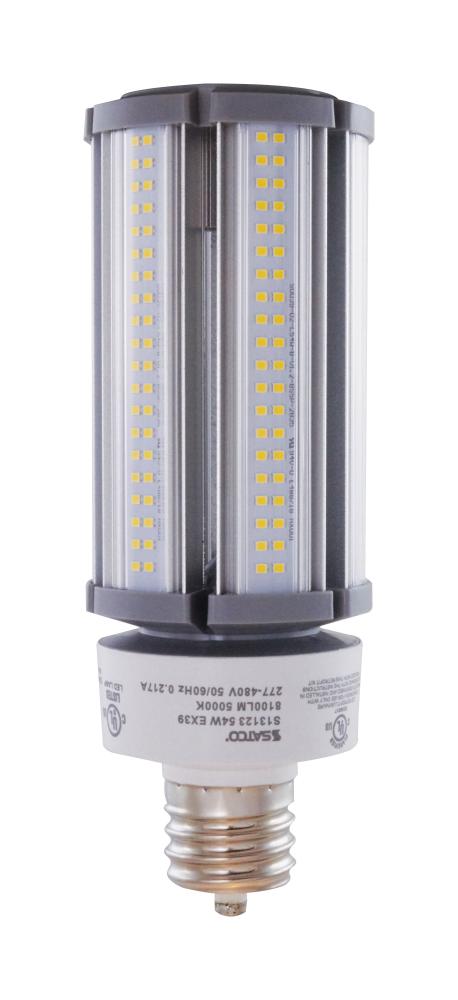

Satco's S13123 54W LED HID replacement bulb offers natural light and a 360 degree beam spread. The lamp features built-in surge protection and a Mogul extended base providing superior outdoor illumination.
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 7.9 in. Width: 7.9 in. Depth: 9.8 in.
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
17
RoHS Compliant:
Yes
Romance Copy:
The SATCO 54W LED HID replacement bulb offers natural light and a 360 degree beam spread. The lamp features built-in surge protection and a Mogul extended base providing superior outdoor illumination.
SDS class:
LED_Lamp
Short Description:
54W/LED/HID/5K/277-480V/EX39
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
54W


Additional Information:
  • Country of Origin- China
